Electrically Conductive Compressed Gas CNG Transfer Hose 350 Bar
In addition to taking the lead in development and mass production of polyure-thane reinforced
hose series (widely used in power steering systems of various buses and vehicles). Our company
studied and developed CNG special hose series relying on our own technical force in 2006. It is
being widely used in the connection pipeline system of loading and unloading between CNG
cylinder cars and pressure reduction station or parent stations.

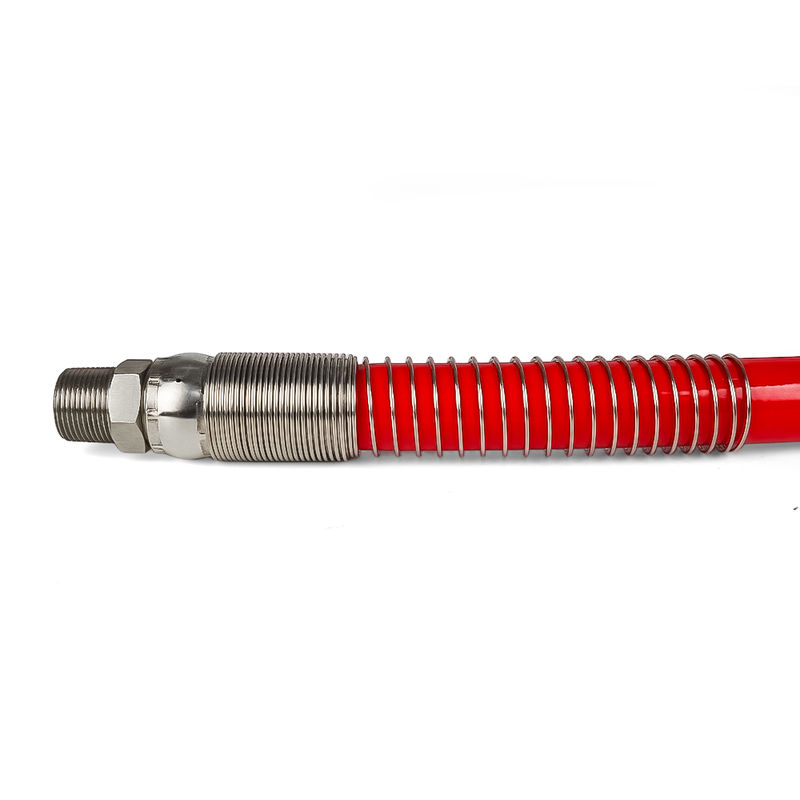

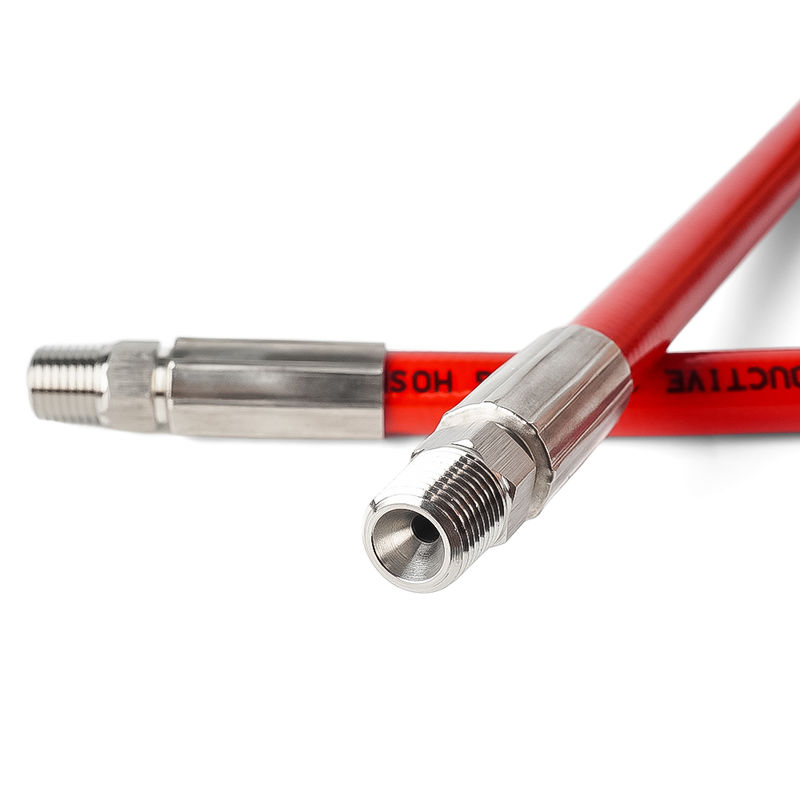

The product is easy to install and convenient to use. Special CNG hose assembly includes
different coupling means: ball valve, quick coupling and flange, so it is convenient to adjust the
distance of loading and unloading.
The product has strong pressure adaptability. Range of application: 1.0MPa-35Mpa, can meet the
needs of different customers.
| Specifications | I.D. (inch) |
O.D. (mm) |
Service Pressure (psi) |
Min Bend Radius (mm) |
| CNGG-6 | 1/4" | 14.0 | 5000 | 51 |
| CNGG-10 | 3/8" | 16.5 | 5000 | 76 |
| CNGG-13 | 1/2" | 12.5 | 5000 | 102 |
| CNGG-19 | 3/4" | 19 | 5000 | 191 |
| CNGG-25 | 1" | 25 | 5000 | 254 |
Application:
